Herolaser Robot Arm Robotic Automatic Welding Machine Equipment

Model profile

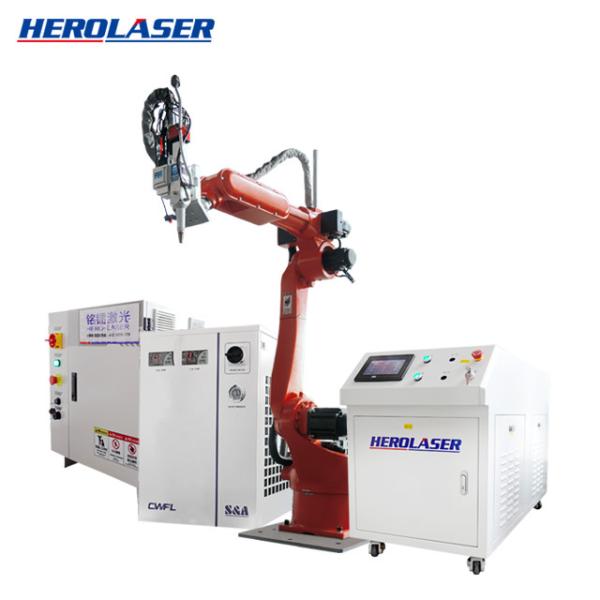

Herolaser robot laser welding system consists of fiber laser, laser power supply, control system, laser indicating positioning system, WOBBLE laser welding head, cooling system, etc.
The laser generator adopts a fiber laser, the laser pulse waveform can be edited arbitrarily, and the energy output is stable.
The laser welding head adopts the laser welding head independently developed by Herolaser, which has very high welding stability and flexibility, and can be rotated 360 degrees.
The cooling system of the fiber laser welding machine is composed of temperature measuring device, water circulation, radiator and deionized resin.
The temperature measuring device detects the water temperature in the water tank in real time and judges whether the water temperature is too high.



Features of automatic laser welding machine:

1. The automatic laser welding machine can carry out small electric welding. After focusing, the laser beam can obtain small light spots and can be accurately positioned, which can be used in the assembly welding of micro, medium and small products manufactured in a large number of automatic production.

2. The silicide raw materials such as titanium can be welded by electric welding, and the raw materials of friends of opposite sex can be welded, and the actual effect is excellent.

3. Four-dimensional ball screw operating platform, with imported servo motor automatic control system and optional rotary work frame, can complete automatic electric welding such as welding, parallel line welding, round welding, etc., with wide application fields, high accuracy and faster speed.

4. The laser output power is large, the welding has a high aspect ratio, the thermal hazard area is small, the deformation is small, and the welding speed is faster.

5. It can be used to weld the inaccessible positions. It has great coordination ability to implement non-contact long-distance electric welding.

6. Laser welding can complete welding, butt welding, overlap welding and sealing welding for thick wall raw materials and high-precision parts.

7. After laser focusing, the power is high. When welding high power electronic devices, the aspect ratio can reach 5:1, and the maximum can reach 10:1.

8. The current wave pattern can be adjusted at will. Different wave patterns can be set according to different welding materials, so that the main parameters of electric welding are consistent with the provisions of electric welding, so as to achieve a satisfactory actual effect of electric welding.

9. Able to carry out electric welding under indoor temperature or unique standard, and the laser welding equipment is simple. For example, according to the magnetic field, the light is not easy to deviate; Laser welding can be carried out in vacuum pump, gas and some kind of vapor natural environment, and electric welding can be carried out according to laminated glass or raw materials that are completely transparent to light.


Parameters

Herolaser is an international company committed to R&D, production and marketing of laser machines. The company has maintained a high growth rate since its establishment in 2004, is now mainly dedicated to serve global customers with intelligent industrial laser solutions.

Starting from China, Herolaser has expanded its service network to 100+ countries and regions after 16 years of high-quality development. It has three branch offices in global industries powers, Japan, Thailand and Taiwan. In China, standardized intelligent equipment manufacturing base has been completely built in Heyuan City. Herolaser frame also includes 4 domestic subsidiaries and 6 operation service centers.

With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.
