Product Description
It belongs to fusion welding, which uses laser beam as energy
source to impact on the weldment joint.
The laser beam can be guided by a planar optical element (such as a
mirror), and then projected onto the weld with a reflective
focusing element or lens.
Laser welding equipment and products
Laser welding equipment and products (17 sheets)
Laser welding belongs to non-contact welding. The operation process
does not require pressurization, but inert gas is required to
prevent oxidation of the molten pool. Filler metal is occasionally
used.
Laser welding and MIG welding can form laser MIG hybrid welding to
achieve deep penetration welding, while the heat input is greatly
reduced compared with MIG welding.
Usage of hand-held laser welding machine
I. Startup preparation
Before starting the machine, please check whether the power supply
and air supply are normal, and whether the welding gun head is
correct and free of dust.
II. Start up
The starting sequence of the hand-held laser welding machine is to
turn on the emergency stop switch first, then turn on the machine
power supply, system power supply, and laser power supply in turn.
Please wait 30 seconds for the water tank to fully rotate,
III. Welding preparation
Turn on the air source switch and set the laser parameters to be
set on the control panel. After preparation, find one material to
be welded for trial welding.
IV. End of welding
When the welding is completed, first turn off the laser power
supply, then turn off the system power supply and the machine power
supply in turn. The welding gun head should be coiled on the
equipment.
| Model | ML-500w |
| Average laser power | 500w |
| Max laser power | 500w |
| Max energy of single pulse | 75J |
| Laser wavelength | 1064nm |
| Laser weld depth | ≤ 2mm |
| Pulse width | 0.3-20ms |
| Laser welding frequency | 0.5 -100HZ |
| Spot size range | 0.2-2mm |
| Welding wire | 0.1-0.4mm |
| Power Supply | 380VAC ± 10% / 50-60HZ |
| Power Consumption | 2KW |
| Water pressure protection | 0.025MPa |
| Cooling water temperature | 35 degrees |
| Temperature protection | 45 degrees |
| Cooling water flow | 10L/min |
| Dimensional | 1100mm x 900mm x 1200mm |
| Weight | 320kg |
| Cooling Way | Water cooling |
| Laser Type | Pulse |
Machine Features for handheld laser welding machine
1. welding by optical fiber, One-time forming workpiece, workpiece not deformed
2. No welding scars, smooth and beautiful
3. Welding welding is very firm
4. The welding head can be replaced to meet various welding needs
5. No technical requirements, anyone can weld perfectly
6. Almost no consumables, no grinding is required in processing
process, material cost is low
7. The welding speed is fast, 1 worker can be used as 5 workers,
labor cost is low
8. No dust and gas pollution, very environmentally friendly
Gun Features for handheld laser welding machine
1. The laser quality is good, the electric welding speed is faster,
and the welding is solid and beautiful. We provide customers with
electric welding solutions. The safety coefficient is high. The
electric welding joint is only effective when touching metal
materials. The touch screen switch has the magnetic induction
function of human body temperature.
2. The portable water-cooled heat dissipation gas welding gun
conforms to the ergonomic design scheme. It is easy to move, and
the welding distance is longer. It can be used for electric welding
at any position of the product workpiece. The photoelectric
conversion is high efficient, low energy consumption, and the
actual operation is simple and easy to learn. Ordinary workers can
enter the post through short-term drills without professional
welding teachers. Long term application can greatly save production
costs.
3. The portable laser welding equipment has the advantages of less
harm, less deformation, blackening, no trace, large welding depth,
sufficient melting, solid and reliable. Portable laser welding
equipment can be used for electric welding from a random
perspective, and can be used to weld all kinds of disordered
products and irregular large and medium-sized product workpieces.
Electric welding with random focus shall be completed.

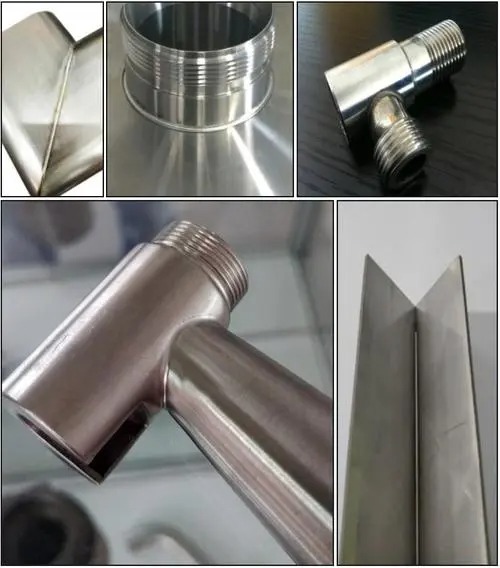

Applied to various metal material, such as stainless steel carbon
steel brass copper aluminum aluminum alloy iron
(Herolaser CE ROHS Welding Device for Butt Fusion Automatic Wire
Feeding Portable Laser Welding Machine)
Applications
Aviation Parts Domestic Appliance
Elevator Manufacturing Auto Parts
