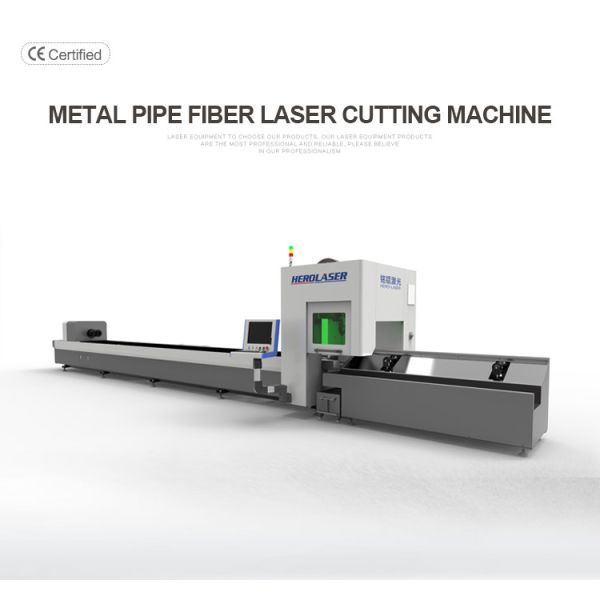

Precision laser cutting machine is a special cutting equipment
designed by using laser technology and numerical control
technology. It has the characteristics of stable laser power, good
beam mode, high peak power, high efficiency, low cost, safety,
stability and simple operation.
-------------------------Product
Parameters-------------------------------------
| Optical performance parameter |
| Laser source wavelength | ML-C6-QF-BP-IW |
| Output power rate of the Laser source | 1070nm |
| Effective cutting area | 600mm*600mm |
| Cutting thickness (depend on Laser source power) | Carbon ≤8mm;Stainless Steel ≤4mm; |
| Aluminum Alloy ≤2mm; Copper ≤2mm; |
| Positioning accuracy | ≤±0.03mm |
| Repeated position accuracy | ≤±0.02mm |
| Max speed of X-axis | ≤20m/min |
| Max speed of Y-axis | ≤20m/min |
| Max speed of Z-axis | ≤17m/min |
| Synthesis speed | ≤20m/min |
| Max accelerated speed | 0.3G |
| Bearing weight | 300KG |
| Electric demand | AC220V±5%50Hz |
| Total Power consumption | 6KW-25KW |
| Dimension | 1880*1450*2100(mm) |
| Machine weight | 1200KG |
| Support Graphical format | DXF |
-------------------------Details of
Product-----------------------------------------
-------------------------Advantages of laser
cutting---------------------------
- Can cut all kinds of graphics on planiform plates.
- High precision, fast speed, narrow cutting seam, minimum heat
affected zone, smooth cutting surface without burrs.
- The laser cutting head will not touch the surface of the material
and will not scratch the workpiece.
- Narrow thin kerf, small heat-affected zone, minimal local
deformation of the workpiece, no mechanical deformation.
- Good processing flexibility, can process any graphics.
- It can cut steel plate, stainless steel, aluminum alloy plate,
hard alloy and other hard materials without deformation.
- The parallel exchange platform is used to complete the exchange
within 20 seconds, which greatly improves the processing
efficiency.
- Low power consumption, no reaction gas required, compressed air
is used as auxiliary gas for laser cutting.

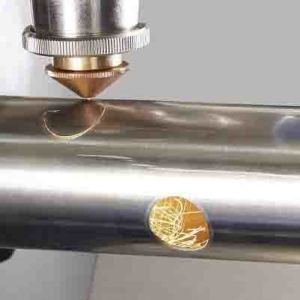

---------------------------------Cutting
Effect--------------------------------------------
-------------------------Applicable
Industry------------------------------------------------
-------------------------After-sales Services--------------------------------------------------
① 2 year guarantee for laser source(people damaged are charged)
② Full technical support / by e-mail, call and video
③ Spare parts supply
④ Free online training installation and operation
⑤ 12 hours quick feedback & after-sales services
⑥ ODM/OEM service
