1080nm Robotic Welding Equipment , Automatic Machining Laser Weld Machine

Ask Lasest Price
Brand Name :	Herolaser
Model Number :	ML-WY-WR1000
Certification :	CE, FDA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	20 sets/month
Delivery Time :	7 work days

Add to Cart

Product Details
Company Profile

1080nm Robotic Welding Equipment , Automatic Machining Laser Weld Machine

Robotic Welding Equipment Laser Weld Machine Automatic Machining

Technical Parameters
Power(Laser Source)	1000W,1500W,2000W
Wavelength	1080nm
Working Mode	Continuous / Modulation
Material Thickness	SS,Aluminum Alloy≤3mm
Control System	ML Laser Control System
Aiming & Positioning	CCD,Red Light Indicator
Cooling	Water Cooling
Power(Machine)	5KW ~10KW
Power Demand	380V±10%,50Hz/60Hz AC

Equipment Configuration List
Name	Specification	Quantity	Remark
Six-axis Manipulator	Repeat Positioning Accuracy 0.05mm	1 Set	QX1600 (With base)
Fiber Laser Source		1 Set
WOBBLE Welding Head	Made by Herolaser	1 Set	Domestic
Host Cabinet	Herolaser Customized	1 Set	Domestic
CCD Observation System	Dedicated for Welding	1 Set	Domestic
Wire Feeding Device	Herolaser Customized	1 Set

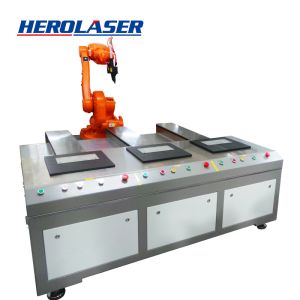

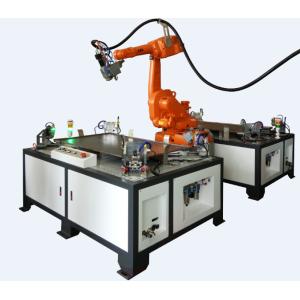

Herolaser robot laser welding

Herolaser robot laser welding system consists of fiber laser, laser
power supply, control system, laser indicating positioning system,
WOBBLE laser welding head, cooling system, etc.The laser generator adopts a fiber laser, the laser pulse waveform
can be edited arbitrarily, and the energy output is stable.
The laser welding head adopts the laser welding head independently
developed by Herolaser, which has very high welding stability and
flexibility, and can be rotated 360 degrees.
The cooling system of the fiber laser welding machine is composed
of temperature measuring device, water circulation, radiator and
deionized resin.
The temperature measuring device detects the water temperature in
the water tank in real time and judges whether the water
temperature is too high.
If the temperature exceeds the upper limit, the system will
automatically turn off the laser to avoid damage to the laser.
After the machine is turned on, the water circulation and the
radiator form heat exchange with the outside world, which quickly
removes the heat generated when the laser is working, ensuring that
the laser is working properly.
The cooling system and the whole machine adopt an integrated design
to make the system more concise and occupy a smaller area.
Angle welding of various complex products
It can carry out flexible transmission and non-contact welding for
difficult-to-access precision parts, which has great flexibility
Adapt to the welding seam, tailor welding, butt welding and stitch
welding of various complex products
Wobble Welding HeadWider applications, large workpieces, workpieces with wider welding
seams can be welded
Advantages of wobble welding machine technology
1. High quality spot welding
2. The allowable range of weld width is expanded
3.Beautiful weld
4. Can weld a variety of metals
5. Low laser power requirement 6. Process stability
