    Water Cooling AC380V Hero Laser Robot Laser Welding Machine

    Ask Lasest Price
    Brand Name : Herolaser
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets per month
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

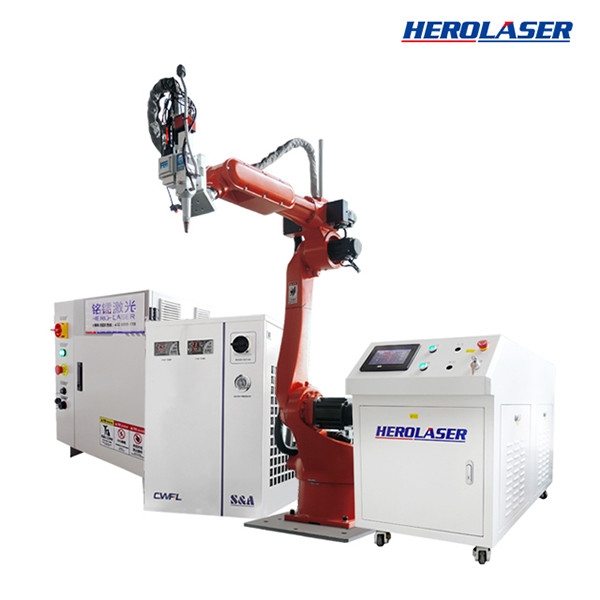

    Water Cooling AC380V Hero Laser Robot Laser Welding Machine

    Parameter
    Technical Parameters
    Power(Laser Source)
    1000W,1500W,2000W
    Wavelength
    1080nm
    Working Mode
    Continuous / Modulation
    Material Thickness
    SS,Aluminum Alloy≤3mm
    Control System
    ML Laser Control System
    Aiming & Positioning
    CCD,Red Light Indicator
    Cooling
    Water Cooling
    Power(Machine)
    5KW ~10KW
    Power Demand
    380V±10%,50Hz/60Hz AC

    Equipment Configuration List
    Name
    Specification
    Quantity
    Remark

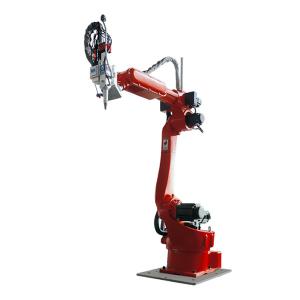

    Six-axis Manipulator
    Repeat Positioning Accuracy 0.05mm
    1 Set
    QX1600 (With base)
    Fiber Laser Source
    1 Set
    WOBBLE Welding Head
    Made by Herolaser
    1 Set
    Domestic

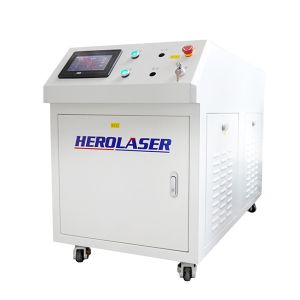

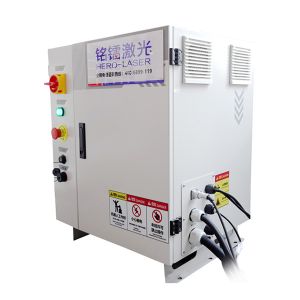

    Host Cabinet
    Herolaser Customized
    1 Set
    Domestic
    CCD Observation System
    Dedicated for Welding
    1 Set
    Domestic
    Wire Feeding Device
    Herolaser Customized
    1 Set

    Water Cooling AC380V Hero Laser Robot Laser Welding Machine

    Products Description

    Herolaser robot laser welding

    Herolaser robot laser welding system consists of fiber laser, laser power supply, control system, laser indicating positioning system, WOBBLE laser welding head, cooling system, etc.
    The laser generator adopts a fiber laser, the laser pulse waveform can be edited arbitrarily, and the energy output is stable.
    The laser welding head adopts the laser welding head independently developed by Herolaser, which has very high welding stability and flexibility, and can be rotated 360 degrees.

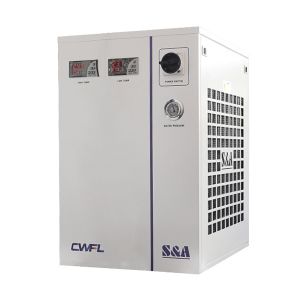

    The cooling system of the fiber laser welding machine is composed of temperature measuring device, water circulation, radiator and deionized resin.
    The temperature measuring device detects the water temperature in the water tank in real time and judges whether the water temperature is too high.
    If the temperature exceeds the upper limit, the system will automatically turn off the laser to avoid damage to the laser.
    After the machine is turned on, the water circulation and the radiator form heat exchange with the outside world, which quickly removes the heat generated when the laser is working, ensuring that the laser is working properly.
    The cooling system and the whole machine adopt an integrated design to make the system more concise and occupy a smaller area.
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine

    Wobble Welding Head

    Wider applications, large workpieces, workpieces with wider welding seams can be welded
    Advantages of wobble welding machine technology
    1. High quality spot welding 2. The allowable range of weld width is expanded 3. Beautiful weld
    4. Can weld a variety of metals 5. Low laser power requirement 6. Process stability
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine

    Angle welding of various complex products

    It can carry out flexible transmission and non-contact welding for difficult-to-access precision parts, which has great flexibility Adapt to the welding seam, tailor welding, butt welding and stitch welding of various complex products
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine
    Sample Show
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine
    Applicable Industry
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine

    Car Manufacturer
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine

    Shipbuilding Industry
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine

    Metal Processing
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine

    Fitness Equipment
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine

    Aerospace
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine

    Construction Machinery
    Installation Instructions
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine
    ABOUT HEROLASER
    Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the
    research and development, production and marketing of laser equipment group of companies, has formed a complete series of
    industrial laser equipment supply platform.

    With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth
    in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other
    regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser
    Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

    Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision
    equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.
    Certification
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine
    Packaging & Shipment
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine
    Water Cooling AC380V Hero Laser Robot Laser Welding Machine
    Our Services

    ---Pre-Sales Service

    ① Free pre-sales 7*24 hours rapid response services / cousulting ② Free sample testing / inspection ③ Free design of fixtures as customers / distributor required ④ Strict quality control for our products ⑤ Quick delivery time
    ---After-sales Services
    ① 2 year guarantee for laser source(people damaged are charged) ② Full technical support / by e-mail, call and video ③ Spare parts supply. ④ Free online training installation and operation ⑤ 12 hours quick feedback & after-sales services ⑥ ODM/OEM service
    FAQ
    1. What model does Herolaser produce?
    Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

    2. What are the payment methods of Herolaser Company?
    T/T, LC, CAD, OA, Trade Insurance, Alibabapay

    3. Does Herolaser accept Acceptance?
    Yes, we accept bank acceptances within 6 months, not commercial acceptances.

    4. Can I visit the factory?
    Available to have a visit to our factory at any time.

    5. What can I get with the purchase of equipment?
    Each machine has a set of standard accessories.

    6. Can I go to the factory to test the machine before shipment?
    Of course you can.

    7. How is the delivery and shipment?
    Ship in 7 days after 100% payment; Packaged with Plywood box.

    8. How about your pre-sales service?
    Provide quick response and free consulting services within 8 hours.

    9. How will you guarantee after-sales services?
    We offer two years warranty for laser source, one year for the machine.

    10. How will you guarantee after-sales services?
    We offer two years warranty for laser source, one year for the machine.
