1070nm Automatic Laser Welding Machine

Ask Lasest Price
Brand Name :	Herolaser
Model Number :	ML-WF-ZD-3D-IQW1000
Certification :	CE, FDA
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	300 sets/month
Delivery Time :	12 days

Add to Cart

Product Details
Company Profile

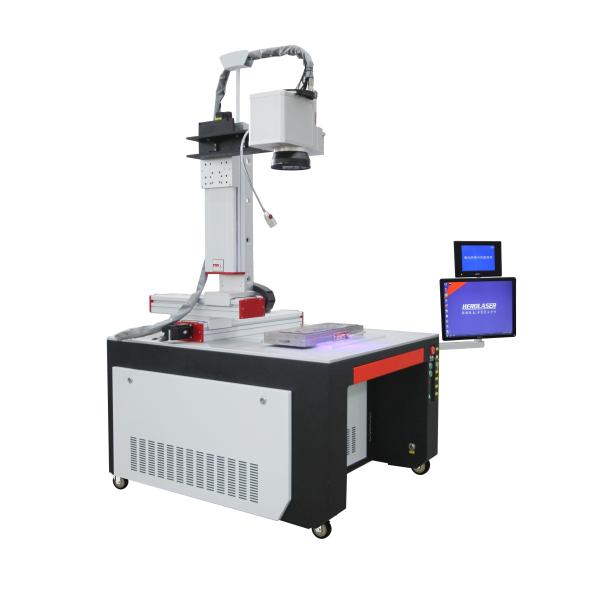

1070nm Automatic Laser Welding Machine

Three-dimension (X/Y/Z Axis) Automatic Laser Welding Machine Scanning Laser Welding Machine

Product introduction:

The laser welding system is composed of fiber laser, laser power supply, control system, laser indication and positioning system, motion system, rotating system, vibrator laser welding joint, cooling system, etc. The laser generator adopts continuous wave fiber laser with high stability of energy output.
The laser welding machine adopts 1000-3000 watt fiber laser, which has high electro-optical conversion efficiency and long laser life, which can reach 100,000 hours. 25%-30% of the energy provided by the power supply is converted into light energy, and the electro-optical conversion rate is 10 times that of the YAG laser. It is a kind of intelligent operation with integrated anti-static type of light, machine, electricity, water, and gas.
The cooling system of fiber laser welding machine is composed of temperature measuring device, water circulation, radiator and deionized resin. The temperature measuring device detects the water temperature in the water tank in real time and judges whether the water temperature is too high. If the temperature exceeds the upper limit, the system will automatically shut down the laser to avoid damage to the laser. After the machine is opened, the water circulation and the radiator form heat exchange with the outside world, which quickly takes away the heat generated when the laser is working to ensure that the laser works normally. The cooling system and the whole machine adopt the integrated design, which makes the system more concise and occupies a small area.

Model features:

The fiber laser spot is very small, the heat affected zone is small, the deformation is small, and the welding speed is super-fast.
Fiber laser service life of 100,000 hours, complete no consumables, daily maintenance is more convenient.
30% of the energy provided by the power supply is converted into laser energy, making the equipment more energy saving and electricity saving.
CCD LCD monitoring and observation system, can clearly observe the product positioning and welding effect according to the red light indication.
Fiber laser multi-mode welding, according to the requirements of the product can be freely converted pulse and continuous mode.
It can be difficult to approach the precise parts, the implementation of flexible transmission of non-contact welding, has a great flexibility, adapt to a variety of complex products seam welding, welding, butt welding, stack welding, etc.
High energy density, low heat input, small thermal deformation, narrow melting zone and heat-affected zone, and large penetration depth.
The cooling rate is high, the weld is thin, and the joint performance is good.
Compared with contact welding, laser welding does not use electrodes, so it reduces man-hours and costs.
The welding seam is fine, the depth is large, the dimension is small, the precision is high, the appearance is smooth, flat and beautiful.

Technical Details:

Laser power	1000W
Wavelength	1070nm
Work mode	Continuous/modulation
Control system	Herolaser made
Positioning system	CCD/red light positioning system
Cooling system	Water cooling
Power consumption	3KW ~8KW
Power supply	220V±10%, 50Hz/60Hz
Welding thickness	≦5mm
Welding speed	≦120mm/s
Cabinet dimension	1110mm610mm960mm
Dimension of water chiller	610mm475mm620mm

Main Configuration:

Item	Spec.	Qty
Laser source	CW fiber laser	1 set
Scanning welding head	Herolaser made	1 set
Laser cable	10 meters	2 sets
Control cabinet	Herolaser made	1 set
CCD observation	For welding purpose	1 set
Water chiller	Dual temperature and dual control	1 set

Application scope:

Applicable to aviation, aerospace, automobile, power battery, machinery manufacturing, shipbuilding, chemical industry.

Samples for reference:

FAQ

1. How is the payment?

30% deposit before production and the balance 70% before shipment

2. How is the delivery and shipment?

Ship in 7 days after 100% payment;
Plywood box packaging

3. How will you guarantee aftersales services?

We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online

4. How about your presales service?

Speeding offer within 8 hours quick response and free consulting.
Free sample welding or testing is available
Progressing solution design to all clients, including distributors and end users.
