1070nm High Precision Laser Cutting Machine

Ask Lasest Price
Brand Name :	Herolaser
Model Number :	ML-CP-A01-500W
Certification :	CE, FDA
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	300 sets/month
Delivery Time :	7-15 days

Add to Cart

Product Details
Company Profile

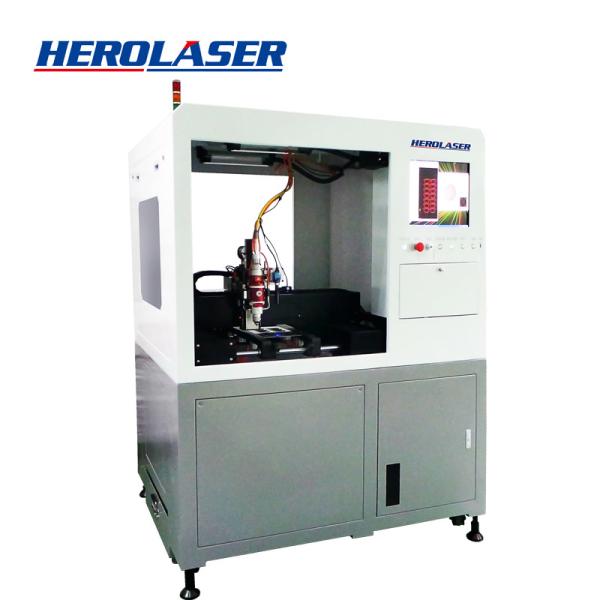

1070nm High Precision Laser Cutting Machine

Eyeglasses Cutting Machine High Precision Laser Cutting Machine for Spectacle Frame

Model introduction:

The special laser cutting machine for glasses can cut arbitrary design patterns on the plate, with fast speed, high precision, one-time forming, and no need for subsequent processing. It is dozens of times faster than wire cutting, which greatly improves the processing efficiency; visually discharging, close fitting, saving materials. One machine with multiple functions, not only can meet customers' requirements for cutting flat plates, but also can meet the cutting requirements of round pipes and special-shaped materials (square steel, flat iron, channel steel, square pipe)

Model features:

It can cut various patterns on flat materials
High precision, fast speed, narrow cutting seam, small heat-affected zone, smooth cutting surface without burrs.
The laser cutting head will not touch the surface of the material and will not scratch the workpiece.
Very small local deformation of the workpiece, no mechanical deformation
It can cut steel plate, stainless steel, aluminum alloy plate, hard alloy and other materials of any hardness without deformation
Optional visual positioning system can be used to accurately cut specific plates such as corroded printing.

Technical details:

S.N	Item	Specifications
1	Model type	Laser cutting machine for glasses
2	Laser wavelength	1070nm
3	Maximum output power	500W
4	Effective cutting range	600*350mm
5	Cutting thickness	≤2mm
6	Cutting length range	Within 3000mm
7	Cutting speed	≤10000mm/min
8	Positioning accuracy of worktable	≤0.05mm
9	Repeated positioning accuracy of worktable	≤±0.01mm
10	Electricity demand	AC 220V ±5% /50Hz
11	Whole machine power consumption	≤3.5KW
12	Equipment size	150016002000mm

Applied range:

It is widely used in metal crafts, saw blades, glasses industry, spring blades, hardware and other industries. It can also be used in sheet metal processing and advertising sign font production.

Samples for reference:

FAQ

1. How is the payment?

30% deposit before production and the balance 70% before shipment

2. How is the delivery and shipment?

Ship in 7 days after 100% payment;
Plywood box packaging

3. How will you guarantee aftersales services?

We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online

4. How about your presales service?

Speeding offer within 8 hours quick response and free consulting.
Free sample cutting or testing is available
Progressing solution design to all clients, including distributors and end users.
