500W High Precision Laser Cutting Machine

Ask Lasest Price
Brand Name :	Herolaser
Model Number :	ML-CT-A01-500W
Certification :	CE, FDA
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	200 sets/month
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

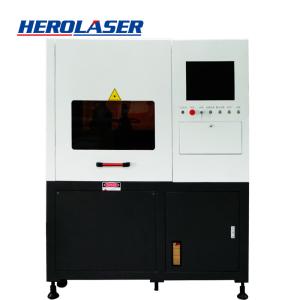

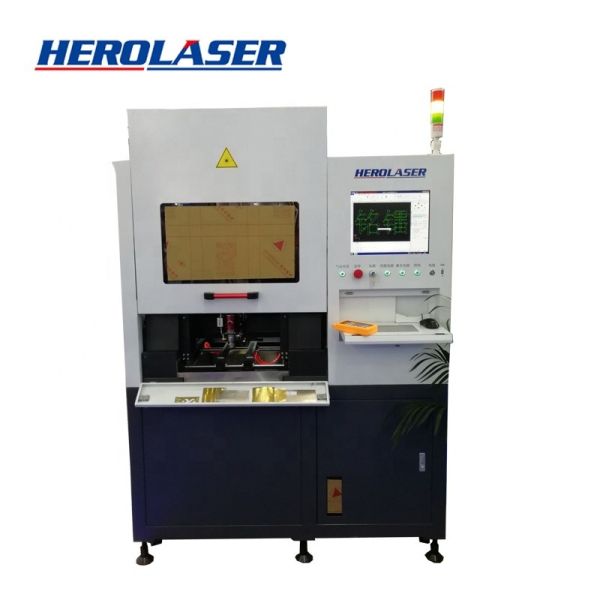

500W High Precision Laser Cutting Machine

Compact Design High Precision Fiber Laser Cutting Machine in Small Scale

Introduction of machine:

This model adopts high-precision linear motor workbench, high precision, fast speed; optional high-precision CCD automatic positioning, automatic calibration. The whole process controlled by automatic computer software, the software interface real-time feedback, timely understanding of the processing status, non-contact processing program, no mechanical stress and deformation, simple operation, high cutting precision.

Advantages of New machine:

Practical new type patent integrated design, can match with different types or manufacturers of laser source, compact structure reliable, safe, practical and reasonable.
Using an optical marble platform, anti-vibration frame design, suitable for high speed movement, high stability.
High-precision, with full feedback linear motor workbench, speed is fast; large working area visual precision positioning is optional, automatic precision calibration.
The multi-function integrated control, independent research and development of patent software, software automatic control in processing, the software interface real-time feedback, showing all functions and all parts of processing status; non-contact processing mode, no mechanical stress and deformation.

Product parameters:

Item	Parameters
Laser wavelength	1070nm
Maximum output power	500W
Effective cutting range	600mm*350mm
Cutting thickness	≤2mm
Cutting length range	within 3000mm
Cutting speed	≤10000mm/min
Workable positioning accuracy	≤0.05mm
Repeat positioning accuracy	≤±0.01mm
Electricity demand	AC220V±5%/50Hz
Power consumption	≤3.5kw
Cabinet size	1500mm1600mm2000mm

Applied area and materials:

Applied to various metal sheet cutting and punching and other kinds of laser processing, such as hardware, consumer electronics components, various instruments, sheet metal processing industrial cutting; precision cutting and drilling for various metal materials.

Samples for reference:

FAQ

1. How is the payment?

30% deposit before production and the balance 70% before shipment

2. How is the delivery and shipment?

Ship in 7 days after 100% payment;
Plywood box packaging

3. How will you guarantee aftersales services?

We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online

4. How about your presales service?

Speeding offer within 8 hours quick response and free consulting.
Free sample cutting or testing is available
Progressing solution design to all clients, including distributors and end users.
