    Multifunctional 500W High Precision Laser Cutting Machine For Eyewear Frame

    Ask Lasest Price
    Brand Name : HEROLASER
    Model Number : ML-CP-A01-500W
    Certification : CE and FDA
    Price : 25000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 sets/ month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    Multifunctional 500W High Precision Laser Cutting Machine For Eyewear Frame

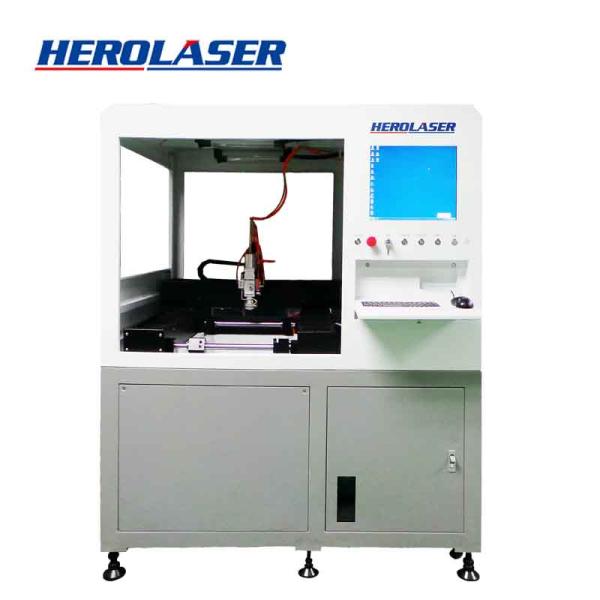

    High Precision Eyewear Frame Laser Cutting Machine

    Features

    • Practical new type integrated design, compact structure, reliable, safe and practical.
    • Adopts optical marble worktable, anti-vibration frame design, suitable for high-speed moving, high stablity.
    • High-precision, ful feedback linar motor worktable, high-speed. The high-precision vision positioning system is optional.
    • Multi-functions integrated controlled, self-developing patented software, the processing is automatic, the PC interface real-time feedbacks, display all the functions and working status. Non-contact type processing, no mechanical deformation.
    Applicable materials and fields
    • Suitable for various of metallic thin sheet cutting, drilling, such as consume electronics parts, metallic parts, panels.
    • Various of metallic material precision cutting and drilling.
    Model list
    No.NameParameter
    1Laser typeImported fiber laser source
    2Laser power500W
    3Cutting range200x200MM
    4Cutting thicknessMax. 3.0MM
    5Cutting line width0.04- 0.06MM
    6Cutting speed≤10M/MIN
    7Repeatability positioning accuracy0.01MM
    8Cooling modeWater cooled
    9Air pressure required1.2- 1.5MPA
    10Total power4.5KW
    11Power supply220V/ 50Hz/ 60A
    12Dimensions1200x2000x1400MM
    13Weight1200KG
    14OptionalSmoke and dust recycling and purifying system
